S358 Product Manual of Portable Digital Voice Amplifier

2020-05-11 13:34:53 43

User Manual of Portable Digital Voice Amplifier

S358

Norwii Wireless Presenter

Welcome to use digital voice amplifier S358 series, its capacity of lithium batteries can reach to 4000mAh. With double endurance and long standby capacity, it’s suitable for teaching, meeting, training, tour guide, singing, square dance, sales promotion, outdoor activities, etc. Please read the manual carefully before using, so that you can operate the voice amplifier correctly and get ideal performance.

Product functional features:

1. This amplifier has wired and UHF wireless versions. The wired version has no UHF receiving circuit and cannot be used as a wireless version. The wireless version has a UHF wireless receiving circuit, which can achieve wireless amplification with the UHF wireless transmitter.

2.Wired version has 2000mAh or 4000mAh built-in lithium battery separately; and UHF wireless version has 2000mAh or 4000mAh built-in lithium battery separately.

3.With digital amplification technology, its rated power is 5W and max power is up to 10W.

4.High performance double NdFeB foam edge loudspeaker, with clear acoustic fidelity, loud voice and high sensitivity.

5.Equipped with mainstream TYPE-C USB interface, it can be charged with 5V mobile phone charger and computer USB port.

6.Dial volume switch, simple and fast volume control.

7.Support AUX-in, support MP3, WMA, WAV files.

8.Exquisite and fashionable appearance design, comfortable feel, simple function, simple operation, easy portability such as hanging on shoulder or waist.

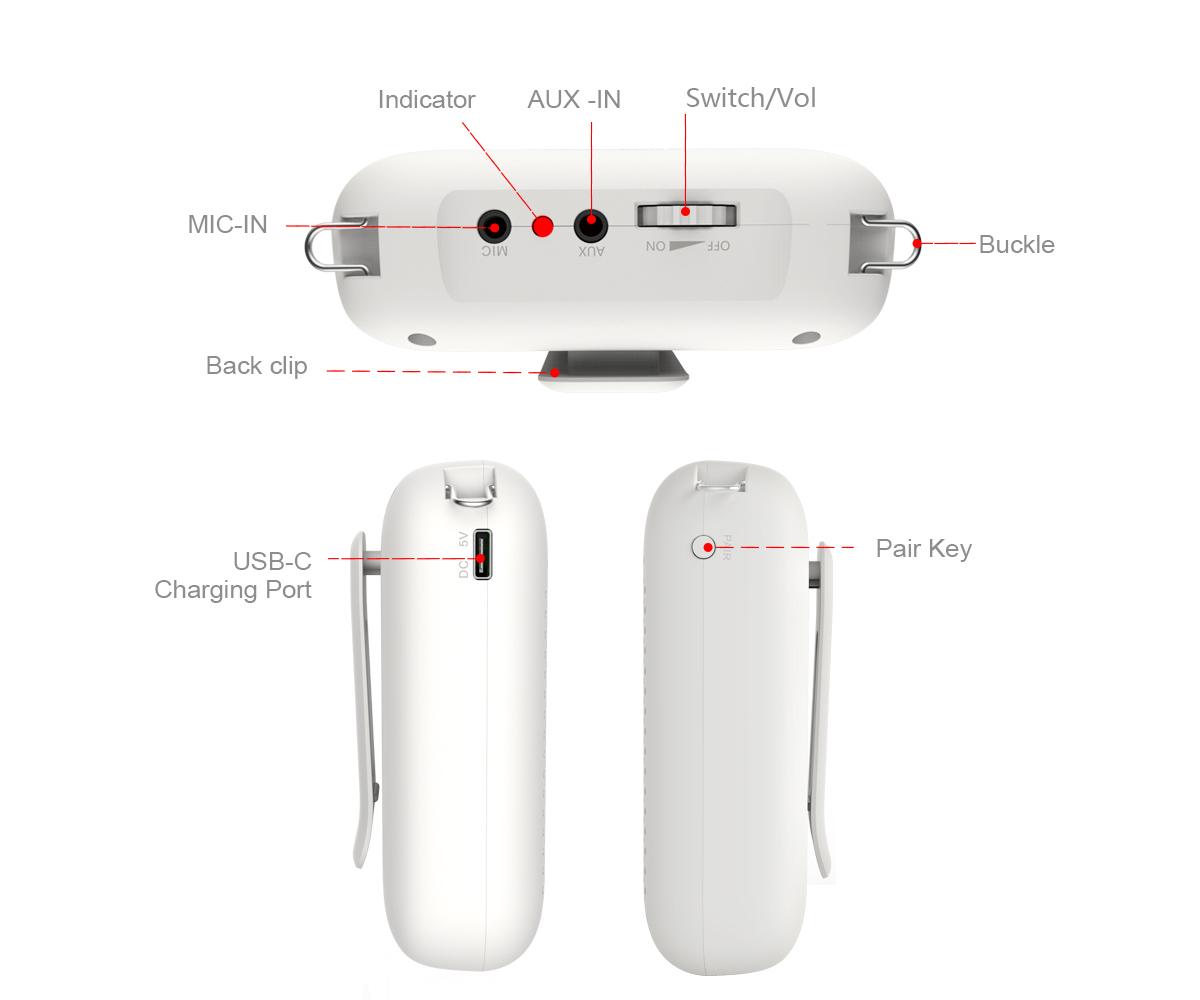

Function map:

Norwii Wireless Presenter

Keys and Ports instruction:

Norwii Wireless Presenter

Mic-inIn Standby mode, insert microphone to 3.5mm microphone interface to amplify.

Norwii Wireless Presenter

Aux-in3.5mm audio interface, support music play, insert audio cable to play music automatically.

Norwii Wireless Presenter

Pair keyLong press Pair key, you can connect the UHF wireless transmitter, and the UHF wireless amplification can be achieved after the pairing is successful. For wired version, this key has no function ,no silk print.


Norwii Wireless Presenter



TYPE C Charging

Port


Charging port supports charging through 5V mobile phone charger and computer USB port.

Norwii Wireless Presenter

Dial Volume Switch

Rotating the dial can switch on/off the amplifier and adjust the volume. Rotate the switch clockwise (pull right) to turn on the amplifier and increase volume, rotate the switch counterclockwise (pull left) to decrease volume till turn off the power.

Operation description:

1.Power switch: Pull right the switch clockwise, turn on the amplifier when you hear a "click" and the indicator becomes on. Pull left the switch counterclockwise, turn off the amplifier when you hear a "click" and the indicator becomes off.

2.Volume control: Rotate the volume dial to adjust the volume. Pull right the button clockwise to increase the volume and pull left the button counterclockwise to decrease the volume.

3.Microphone amplification: Insert the microphone into the MIC interface to amplify; Please wear the microphone well and properly adjust the microphone position and keep at least 50cm distance from amplifier to avoid howling.

4.UHF wireless amplification: The UHF wireless transmitter and the voice amplifier need be paired before using. This operation only needs one time. Please Keep two devices within 2 meters, then turn on the voice amplifier, long press the Pair key of the voice amplifier for 3 seconds for pairing. When the red indicator becomes yellow, it means the voice amplifier is waiting for pairing. Then long press the pair key of the UHF wireless transmitter for 3 seconds. When the LED indicator of the voice amplifier flickers 3 times and becomes red, it means the voice amplifier and UHF wireless transmitter connects successfully. You can use UHF wireless transmitter to amplify voice by inserting a wired microphone. (Pairing and wireless amplification only for the UHF wireless version)

5.Aux mode: Connect the voice amplifier with computers, mobile phones, PAD, MP3,MP4 and other devices through the 3.5mm AUX audio cable to play audio, it can be used as external speaker at this time.

6.Charging: It starts to be charged through TYPE-C USB cable when you connect it with computer, a 5V mobile phone charger, or a mobile power supply device etc. The indicator flickers at the speed of 1 time/second when it’s being charged. The indicator is always lighting when it’s 80% charged.  It will be full of charge if you continue to charge one more hour. When the indicator flickers quickly which shows that the battery power is low, please charge it. It takes about 4-6 hours to fully charge it.

Tips and cautions:

1.The microphone is placed 0.5 to 1 centimeter in front of your mouth. It is suggested that the sponge cover should not be removed, because the sponge cover can weaken the air flow, reduce the noise, and make the voice be clear.

2.Microphone should not be close to the voice amplifier, and it’s better if place the amplifier against the microphone. If howling occurs you can reduce the volume appropriately or enlarge the distance between the microphone and the amplifier. The microphone pickup head should not be grasped by hand, otherwise it will be easily howling because of resonance.

3.The product only supports standard 5V charging and does not support all kinds of QC quick charging. Charging with a voltage higher than 5V will burn the product or fail to charge.

4.When you use it for the first time, or after a long time before you use it again, please keep the amplifier be fully charged to ensure battery life.

5.In order to avoid distortion or damage caused by excessive voltage or current, please do not insert the external sound source signal into the MIC interface.

6.Please don’t disassemble, or repair it by non-professional technical personnel. If there are any problems, please contact our company for after sale service.

7.In order to prevent the danger of short-circuiting, please keep products or accessories away from water, moisture, rain or splash.

8.Do not use it in inflammable and explosive areas or in areas where radio equipment is prohibited. When you entering dangerous areas or prohibited areas, power should be turned off to avoid potential safety hazards.

9.Do not use it in high temperature, high pressure and high humidity environment (such as sunshine exposure, stove, heater, humidifier, water pool, etc.). Do not place it or close to dangerous sources (fire source, liquid, explosive, high-speed machinery, etc.) in order to avoid damage and danger.

10.In order to protect the environment, please put the discarded amplifier in the designated trash can or send it back to the manufacturer. It should not be discarded at will.

Packing List:

Voice amplifier *1, 3.5mm audio cable *1, TYPE-C USB cable*1, Head wear microphone*1,

Hanging rope*1, User manual *1。(The wireless version will come with 1 UHF launcher, 1 Micro

charging wire, and 1 UHF launcher manual。)

Product specification:

1.Specification of wired and UHF wireless version with 4000mAh lithium battery:

Rated power:5W

Max power:10W

Loudspeaker:3 inches 2 ohmic magnetic speaker

Frequency response:120Hz-15KHz

Battery:3.7V/4000mAh, 2 lithium batteries in parallel

Charging voltage:USB/DC 5V 1A

Charging time:4-6 hours

Using time:Wired: 35-38hours Wireless:20-25hours

Size:91.1*101.5*37.8mm

Net weight:205.5g

2.Specification of wired and UHF wireless version with 2000mAh lithium battery:

Rated power:5W

Max power:10W

Loudspeaker:3 inches 2 ohmic magnetic speaker

Frequency response:120Hz-15KHz

Battery:3.7V/2000mAh,1 lithium battery

Charging voltage:USB/DC 5V 1A

Charging time:2-3 hours

Using time:Wired: 16-18hours Wireless: 8-10hours

Size:91.1*101.5*37.8mm

Net weight:159.5g
